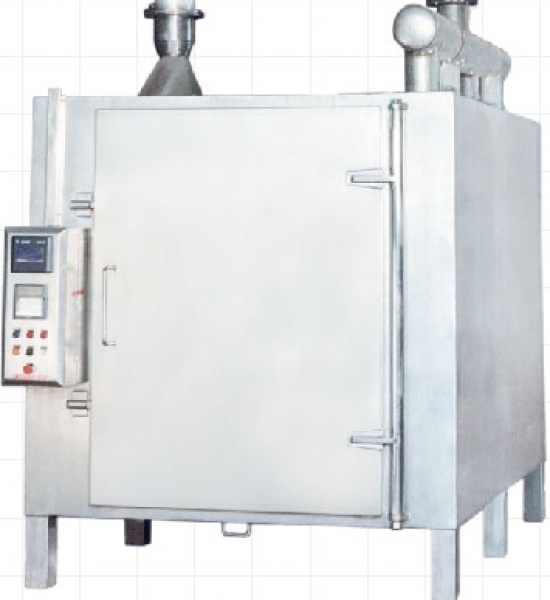

Tray Dryers

Technical Specifications

Models
Loading
Capacity
Bo-12
12 Trays
W D H
Bo-24
24 Trays
W D H
Bo-48
48 Trays
W D H
Bo-96
96 Trays
W D H
Bo-192
192 Trays
W D H
External Dimension
in mm
1370 x 530 x 940 1370 x 940 x 940 1980 x 1020 x 1880 3320 x 1020 x 1880 3320 x 1900 x 1880
Internal Dimension
in mm
840 x 430 x 840 840 x 860 x 840 1020 x 930 x 1830 1960 x 930 x 1830 1960 x 1750 x 1830
No. of Doors One One One Two Two
No. of Blowers One Two One Two Four
No. of motors / H.P.
3 Phase 415 volts.
1/0.5 H.P.
3 phase 415V.
1/0.5 H.P.
3 phase 415V.
1/1 H.P.
3 phase 415V.
2/1 H.P. each
3 phase 415V.
4/1 H.P. each
3 phase 415V.
Electrical Heating Load
100°C/200°C/300°C
3kw/6kw/9kw 6kw/9kw/12kw 9kw/15kw/18kw 15kw/21kw/27kw 36kw/42kw/48kw
Steam Heater
No. of Coils
2 2 2 2 2
Steam Pressure 3.3 kg/cm2 3.3kg/cm2 3.3kg/cm2 3.3kg/cm2 3.3kg/cm2
Steam Consumption 25 LBS/hr 45 LBS/hr 60 LBS/hr 80 LBS/hr 120 LBS/hr
Insulation in mm
100°C/200°C/300°C
50/75/75 50/75/75 50/75/75 50/75/75 50/75/75
No. of Trolleys Rack System Rack System One Two Four
Tray Size 812 x 406 x 31 812 x 406 x 31 812 x 406 x 31 812 x 406 x 31 812 x 406 x 31
Trolley Dimension Fixed Racks Fixed Racks 840 x 960 x 1780 840 x 960 x 1780 840 x 960 x 1780

The Tray Dryer promises the best of both World conventional operation with the added Edge of cGMP features:


  • Covered drives
  • Two tier trolley with 5.5. Rollers
  • Advanced Controls
  • Improved design-double door provision
  • Enhanced performance by total insulation
  • Inlet Air-H. E. P. A. Filtered
  • All internals with rounded contours.

Primary Features

Its state-of-the-art internal design incorporating:

Rounded corners and angles.

Easy accessibility of internals for Hygienic cleaning.

Even thermal distribution internally all over the chamber with a variation ± 2°c.
