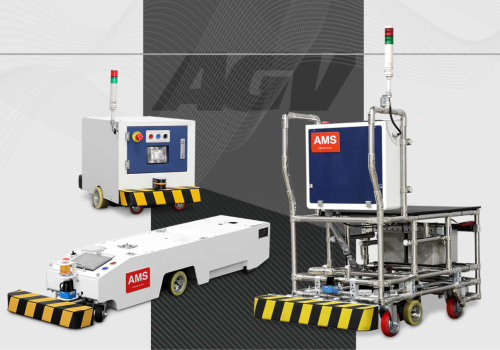

Automated Guided Vehicle
This unique AGV type is capable of towing idled cart from its backside. It is built with AMS MRS (Modular Rack System) which shows the versatility of AMS products. Also its robust-built frame with stainless steel allows it to be highly resistant against any mechanical damage and corrosion. It is equipped with long lasting, heavy duty, battery which can last long time without charging. It is economical and durable which makes the best solution for most AGV application.
TECHNICAL SPECIFICATIONS FOR MRS AGV
• Towing Capacity 1000 kg / 2220 lbs. (depends on floor condition, casters, etc.)
• Drive Type Dual differential drive wheels (100W * 2 wheels)
• BLDC motor (High efficiency and long lifetime)
• Guidance System Magnetic Guide Sensor (N pole detect, 8 bit resolution)
• Command RFID Reader and Card
• Speed Range Standard 30m /min (recommended, Loaded)
• Turn Radius Min 600mm R (Depends on Cart size and design)
• Braking System Time set deceleration Stop, Electric brake stop
• Wheel Lift System Automatic motor lifter System
• Safety Devices Adjustable Obstacle sensor / Laser Scan Sensor (Optional)
• Bumper Sensor, Emergency Switch, Buzzer Signal, Tower lamp
• Touch Screen Display (HMI) Operate, Status, Configure, Command, Alarm History
• Protective Circuit Motor over‐current protection (Protected by motor drive)
• Power source over‐current protection (20A Circuit breaker)
• Power Supply 24V 55 AH (Two 12V batteries, 8 hours of operation)
• Environment Indoor use only. 0 to 40°C. 30 to 80% Humidity (No dew formation)
• Optional System Auto Latch System, Conveyor system
