Pneumatic BalancersĀ

Supporting operation staffs
with superior balance functions

This pneumatic balancer uses compressed-air to drive. Its superior balance functions allows staff to be able to handle heavy and hard objects easily. It can be used easily by just connecting a compressed air source. Due to pneumatic type, there are no concerns about affecting of operation environment. Various arms are available in Toyo Koken’s Pneumatic Balaman and can be optimized with customer’s needs.

Safety Functions

The workpiece/arm can be stopped and held at the existing position even when the supply air is lost.

Balancer is equipped with a Jump-up prevention feature of the arm even if the workpiece was self-destructed from the arm.

Regulator Control

The control system is set up in advanced with the weight of the products to be transferred and the balance function is selected by switch operation.

  • Suitable for lot manufacturing that transfers the same products continuously
  • Balancing function can be switched rapidly = shorter tact time
  • Muti-weight programming

Double Control

The control system can deal with random weights. The weight of the products to be transferred is detected each time.

  • Suitable for handling various kinds of products
  • Balancing pressure is set up each time after lifting up the products by crane operation
  • A press of the Balance button is required to switch to Balance mode

Specifications

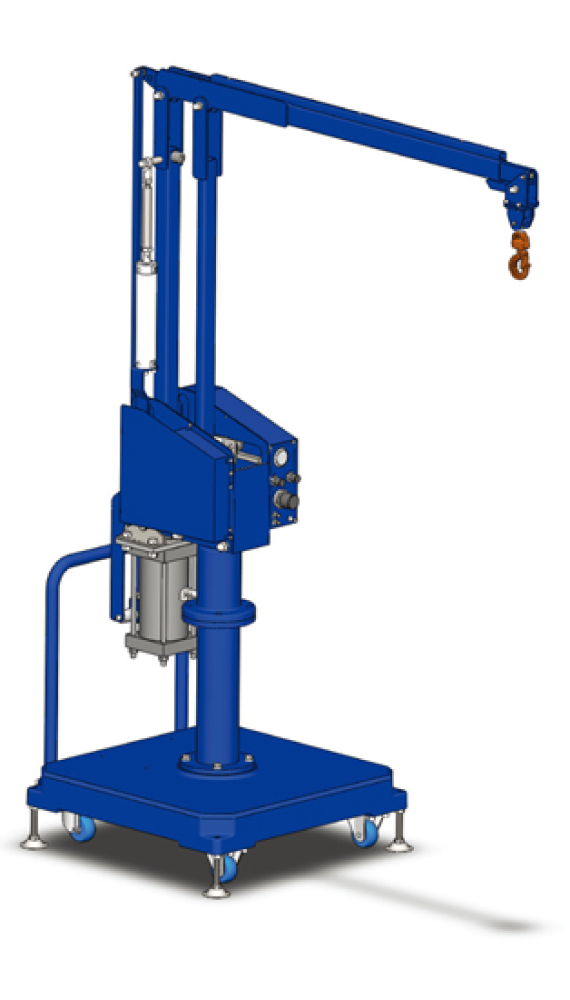

 MODEL BMG-30W BMG-38S BMG-38W BMG-50W
Base Fixed Type SNG-50
Mobile Type SNG-30 SNG-50
Max. Load kg 30 38 50
H1 mm 2260 2480 2500 2260
B mm 1950 2220 2190 1950
C mm 350 220 190 350
E mm 656
J mm 1600 2000 1600
K mm 1090 1175 1260 1090
R mm 1905 2375 1905
L mm 1530 1870 1530
Approx. Mass kg 100 140 135
 MODEL BMG-75W BMG-150W
Base Fixed Type FSG-75 - FSG-150 -
Mobile Type - SNG-75 - SNG-150
Max. Load kg 75 150
H1 mm 2441 2528 2441 2568
B mm 2096 2183 2096 2223
C mm 496 583 496 623
E mm 136 223 136 263
J mm 1600
K mm 1097
R mm 2220
L mm 1620
Approx. Mass kg 220 290
 MODEL BMF-75S BMF-150S BMF-250S BMF-375S BMF-500S
Base Fixed Type FS-75 FS-150 FS-250 FS-375 FS-500
Mobile Type SN-75 SN-150 SN-250 SN-375 -
Max. Load kg 75 150 250 375 500
H1 mm 3487 3525 4045
H2 mm 2840 2945 3245
B mm 1870 1840 2050
C mm 350 320 300
E mm 2050 2010 1970 1868
J mm 1520 1750
L mm 1715 2040
R mm 2240 2260 2870
Approx. Mass kg 180 220 355 383 900
 MODEL BMF-75W BMF-150W BMF-250W BMF-375W BMF-500(4W)
Base Fixed Type FS-75 FS-150 FS-250 FS-375 FS-500
Mobile Type SN-75 SN-150 SN-250 SN-375 -
Max. Load kg 72 142 236 351 435
H1 mm 3487 3525 4045
H2 mm 2840 2945 3245
B mm 2020 2250
C mm 500
E mm 2050 2010 1970 1868
J mm 1520 1750
L mm 1715 2040
R mm 2240 2260 2870
Approx. Mass kg 200 275 404 430 1110
 MODEL BMC-75S BMC-150S BMC-250S BMC-375S BMC-500S
Base Fixed Type CS-75 CS-150 CS-250 CS-500
Manual Type MT-75 MT-150 - - -
Electric Trolly AT-75 AT-150 AT-250 AT-375 AT-500
Max. Load kg 75 150 250 375 500
H1 mm 3487 3525 4045
H3 mm 3560 3590 3630 4235
H4 mm 1921 1897 1728 1826
B mm 1870 1840 2050
C mm 350 320 300
F mm 3090 3190 3230 3870
J mm 1520 1750
L mm 1715 2040
R mm 2240 2260 2690
Approx. Mass kg 180 220 355 383 900
 MODEL BMC-75W BMC-150W BMC-250W BMC-375W BMC-500(4W)
Base Fixed Type CS-75 CS-150 CS-250 CS-500
Manual Type MT-75 MT-150 - - -
Electric Trolly AT-75 AT-150 AT-250 AT-375 AT-500
Max. Load kg 72 142 236 351 435
H1 mm 3487 3525 4045
H3 mm 3560 3590 3630 4235
H4 mm 1921 1897 1728 1826
B mm 2020 2250
C mm 500
F mm 3090 3190 3230 3870
J mm 1520 1750
L mm 1715 2040
R mm 2240 2260 2690
Approx. Mass kg 200 275 404 430 1100

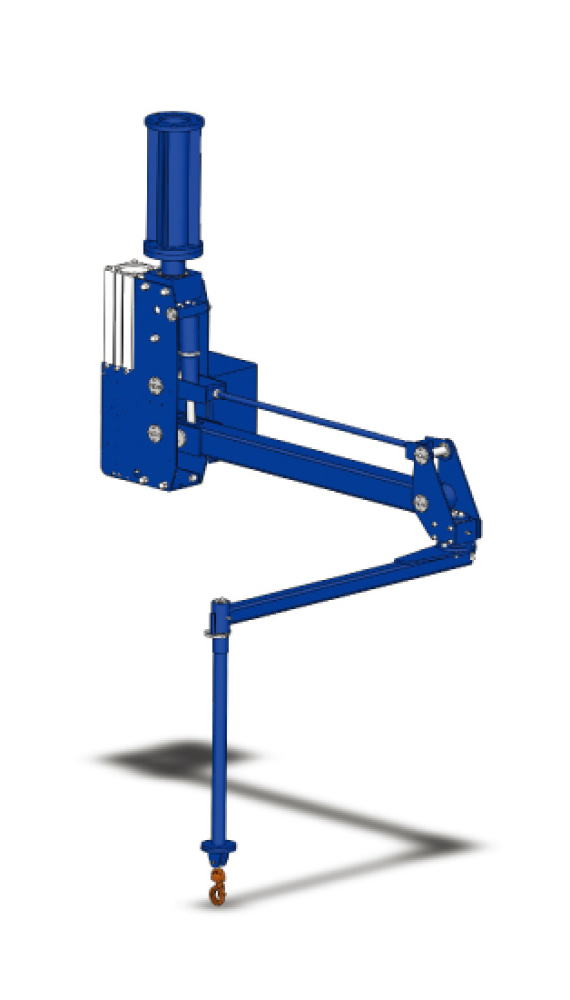

 MODEL BMS-30 BMS-50 BMS-75 BMS-125 BMS-150
Base Fixed Type FSS-30 FSS-50 FS-75 FS-150
Mobile Type SNS-30 SNS-50 SN-75 SNS-125 SN-150
Max. Load kg 30 50 75 125 150
H1 mm 2982 3338 3307 3278 3451
H2 mm 2529 2855 2873 2926 3035
B mm 1800 2110 2060 2000 2156
C mm 500
D mm 900
E mm 1920 1988 1997 1983 2023
J mm 1300 1610 1560 1500 1656
L mm 1540 1525 1835 1535 1812
R mm 1990 2118 2350 2190 2354
Approx. Mass kg 80 120 150 180 280
 MODEL BMS-30C BMS-50C BMS-75C BMS-125C BMS-150C
Base Fixed Type CS-30 CS-50 CS-75 CS-150
Manual Type MT-75SP MT-75 MT-150
Electric Trolly AT-75SP AT-75 AT-150
Max. Load kg 30 50 75 125 150
H1 mm 2982 3338 3307 3278 3451
H3 mm 3082 3573 3542 3476 3613
H4 mm 2012 2188 2114 2072 2143
B mm 1800 2110 2060 2000 2156
C mm 500
D mm 900
F mm 2707 3046 2982 3006 3143
J mm 1300 1610 1560 1500 1656
L mm 1540 1525 1835 1535 1812
R mm 1990 2118 2350 2190 2354
Approx. Mass kg 80 120 150 180 280

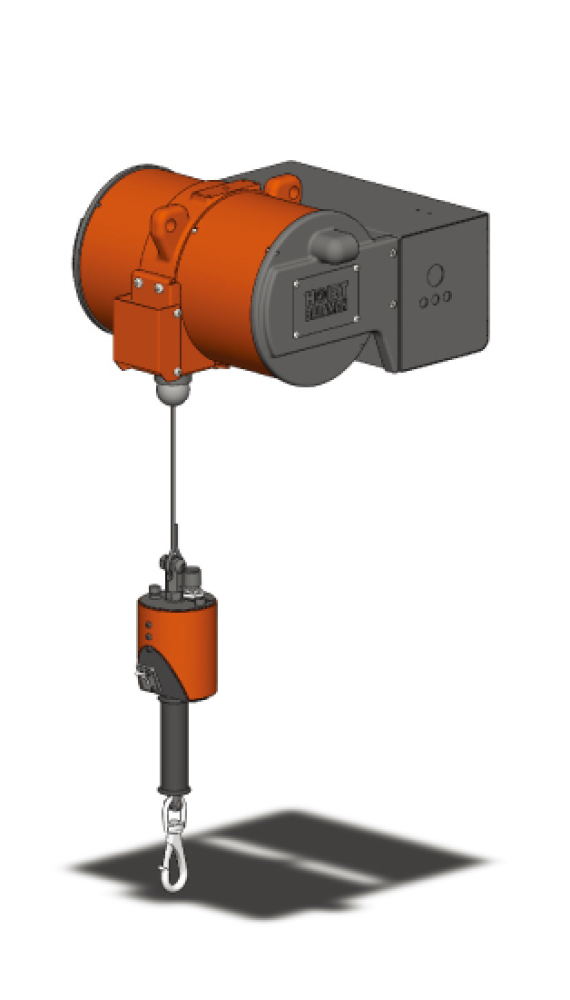

 MODEL BMH-30 BMH-60 BMH-90 BMH-130
Max. Load kg 30 60 90 130
A mm 180 210 220
B mm 16 21
C mm 385 426 435 448
D mm 179 200 261
E mm 1700 2200
F mm 395 530
G mm 2274 2295 2991
H mm 1500 2000
t mm 22 35
L = Wire Length at Upper Stroke mm 200
Approx. Mass kg 25 35 45 50
  • All specs and dimensions are subject to change without notice or may differ depending on export destinations and manufactured year.
