Technical Specifications

Machine
Model		 Working
in Ltrs.		 Volume
in Kgs		 Gear
Size		 Box
Ratio		 Main Motor – HP
(1500 / 750 RPM)		 CHPR.Motor – HP
(1500 / 2880 RPM)		 Approx
Weight
SAI – 10 8L 4 / 2 W 75 7:1 2.0 / 2.0 0.5 / 1.0 600 Kgs.
SAI – 25 20L 10 / 5 V 400 5:1 3.0 / 5.0 1.5 / 2.0 800 Kgs.
SAI – 50 40L 20 / 10 V 500 5:1 5.0 / 7.5 2.0 / 3.0 1100 Kgs.
SAI – 100 80L 40 / 20 V 500 7:5:1 7.5 / 10.0 2.0 / 3.0 1800 Kgs.
SAI – 150 120L 60 / 30 V 600 7:5:1 10.0 / 15.0 3.0 / 5.0 2300 Kgs.
SAI – 250 200L 100 / 50 V 700 10:1 22.5 / 30.0 3.0 / 5.0 3000 Kgs.
SAI – 300 240L 120 / 60 V 700 10:1 22.7 / 30.0 5.0 / 7.5
SAI – 400 320L 160 / 80 V 700 10:1 35.0 / 40.0 5.0 / 7.5 3600 Kgs.
SAI – 600 480L 240 / 120 V 1000 10:1 40.0 / 50.0 5.0 / 7.5 4700 Kgs.
SAI – 700 560L 280 / 140 V 1000 10:1 40.0 / 50.0 5.0 / 7.5 4700 Kgs.
SAI – 800 640L 320 / 160 V 1000 15:1 50.0 / 60.0 5.0 / 7.5
SAI – 1000 800L 400 / 200 V 1200 15:1 63.0 / 85.0 10.0 / 15.0 5600 Kgs.
SAI – 1200 1000L 500 / 250 V 1400 15:1 80.0 / 100 10.0 / 15.0 5800 Kgs.
SAI – 1400 1120L 560 / 280 V 1400 20:1 100 / 100 10.0 / 20.0 6200 Kgs.

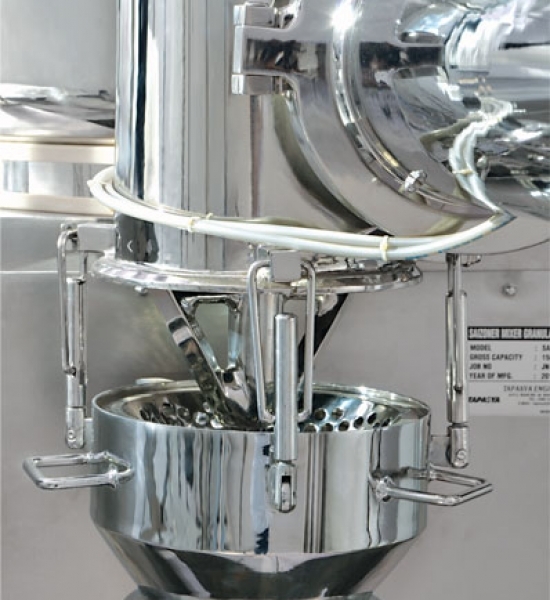

SAIZONER Mixer Granulator is designed to meet special needs of tablet manufacturing technology. This is achieved by reduced processing time, more homogeneous mixing, uniformity of Granule size and above all maintaining improved hygiene compliant to cGMP norms.

Download Technical PDF
Click to Request Information About this Product

Standard Processing Duration

Dry Mixing approx. 3 – 5 Mins.

Wet Mixing approx. 3 – 5 Mins.

Wet Granulation approx. 5 - 10 Mins.

Discharge approx. 1 - 1.5 Mins.

Saizoner is designed to achieve all the requirements of cGMP – Current Good Manufacturing Practices. The components can be easily dismantled, cleaned thoroughly and assembled in quick time. The shaft seals are very effective to check any leakages and cross contamination due to adherents. The bowl and all the components are of highly polished Stainless Steel with smooth contours and is crevice free.

Primary Features

Uniform granules by gentle processing.

Short mixing and granulation time.

Useful working capacity of upto 80% to 40% of bowl volume.

Uniform distribution of all formulation ingredients.

Wide range of applications.

CIP system included enhancing cGMP, reducing product change over time.

Drying under vacuum, at lower temperature with solvent recovery system.

All Saizoner process advantages of Granules Manufacturing.

Bowl shape designed to have no dead spaces.

Easy scale up & Scale down between machine sizes.
